Casa /Prodotti/Fresatrice automatica del colpo/Automatic Extrusion Blow Molding Machine for HDPE Plastic with 130 kg/h Output Capacity

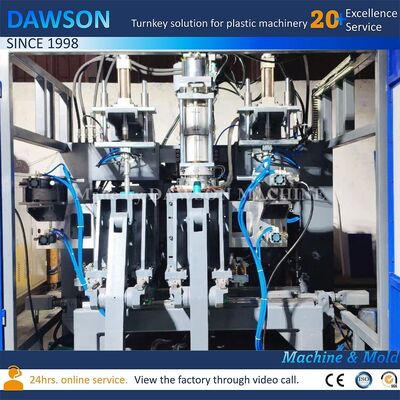

Automatic Extrusion Blow Molding Machine for HDPE Plastic with 130 kg/h Output Capacity

$33,680/sets 1-4 sets
prezzo
Automatic Extrusion Blow Molding Machine for HDPE Plastic with 130 kg/h Output Capacity
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Videoispezione in uscita: Fornito
Rapporto di prova del macchinario: Fornito
Componenti principali: PLC, motore, cuscinetto, ingranaggio, ingranaggio
Lavorazione plastica: PP, HDPE, ABS, PVC, PE, EVA, PE/PP, HDPE/PP
Luogo di origine: Jiangsu, Cina
brand name: DAWSON
Voltaggio: 440V/415V/380V/220V
dimensione (l*w*h): 4,4*3,4*3,6
Forza di serraggio (KN): 270
Diametro della vite (mm): 90
Prodotto (kg/h): 130
Automazione: Automatico
N. di zone di riscaldamento a vite: 4
Potenza di riscaldamento della vite (kW): 10
Potenza motore estrusore (kW): 30
Dimensione della piastra di muffa (larghezza) (mm): 660
Dimensione della piastra di muffa (altezza) (mm): 680
pressione dell'aria (MPA): 0,8
Consumo d'aria (m³/min): 2.2
Potenza di riscaldamento della testa dello stampo (kW): 8
Potenza (kW): 67
Peso (T): 11.3
Punti chiave di vendita: Facile da usare
Garanzia: 1 anno
Tipo di stampaggio mediante soffiaggio: Macchina dello stampaggio mediante soffiatura dell'estrusione
Dimensione massima di applicazione: 1L-5L
Capacità di uscita: 200~250 pezzi/ora
Plastificazione: 70~90Kg/ora
Pesare: 6.5T
Materiale della muffa: P20, 2316, S136H, alluminio con berillio rame.
Impostazioni della lingua: Cinese, inglese e altre lingue secondo le esigenze del cliente
Domanda di manodopera: operetor 1~2
Servizio post-vendita fornito: Invia un ingegnere alla fabbrica del cliente.
Tipo di marketing: Prodotto ordinario
Evidenziare:

HDPE plastic jar blow molding machine

,

extrusion type blow molding machine

,

130 kg h production blow molder
Informazioni di base
Termini di pagamento e spedizione
Descrizione di prodotto
Automatic Extrusion Blow Molding Machine for HDPE Plastic with 130 kg/h Output Capacity 0
Automatic Extrusion Blow Molding Machine for HDPE Plastic with 130 kg/h Output Capacity 1
Automatic Extrusion Blow Molding Machine for HDPE Plastic with 130 kg/h Output Capacity 2


Basic parameters
Maxvolume
 1L-5L(Single head)
Output capacity
 200~250pcs/h
Size
 3.8×2.3×2.5(M)
Weigh
6.5T




Plasticizion
system
Summarize
High efficient low power consumption plasticizion system,transducer control,self-protect function when started at low temperature
Reducer
Material of Gear box body: HT200 Material of gear: ZG35CrMo Material of bearing: 42CrMo Heat treatment of Gear: Quenching
Brand:GUOMAO
(ThebestGearbox supplierinChina)
Screw
 ∮70mm,L/D ratio 25/1,
Material: 38CrMoALA
Nitriding heat-treatment
Cooling by cooling Fan
Cooling system available
Plasticization
70~90Kg/H
 HDPE
HeatingZone
3-4 Aluminum Heater
 Automatic heating
Heatingpower
13.5KW/H
ExtrusionMotor
Three phasea synchronous motor (380V,50HZ)22KW
Brand: W&N
CoolingFan
 3-4zone
 Automatic cooling
Click here to send us messages >>Send Inquiry...
Automatic Extrusion Blow Molding Machine for HDPE Plastic with 130 kg/h Output Capacity 3
Automatic Extrusion Blow Molding Machine for HDPE Plastic with 130 kg/h Output Capacity 4
Automatic Extrusion Blow Molding Machine for HDPE Plastic with 130 kg/h Output Capacity 5
Automatic Extrusion Blow Molding Machine for HDPE Plastic with 130 kg/h Output Capacity 6
Automatic Extrusion Blow Molding Machine for HDPE Plastic with 130 kg/h Output Capacity 7
Automatic Extrusion Blow Molding Machine for HDPE Plastic with 130 kg/h Output Capacity 8
Automatic Extrusion Blow Molding Machine for HDPE Plastic with 130 kg/h Output Capacity 9
Automatic Extrusion Blow Molding Machine for HDPE Plastic with 130 kg/h Output Capacity 10
Automatic Extrusion Blow Molding Machine for HDPE Plastic with 130 kg/h Output Capacity 11
Automatic Extrusion Blow Molding Machine for HDPE Plastic with 130 kg/h Output Capacity 12
Where After-Sales Service Isn’t Just a Promise—It’s a Global Reality. Contact us today to see how our after-sales excellence can power your manufacturing growth.
· On-Site Support, Anywhere in the WorldOur technical team travels globally (like the on-site service in the photo) to install, debug, and train your staff. We ensure your blow molding/injection molding equipment runs at peak efficiency, no matter where your factory is. · 24/7 Expert TroubleshootingGot a problem at 3 AM? Our multilingual support team is ready to resolve technical issues via video call, remote assistance, or urgent on-site dispatch. Downtime is our enemy—your productivity is our priority. · Lifetime Maintenance & Upgrade GuidanceFrom routine maintenance to upgrading molds (like the plastic containers in the image), we provide tailored solutions to keep your production line competitive. Your success is our long-term commitment.
Automatic Extrusion Blow Molding Machine for HDPE Plastic with 130 kg/h Output Capacity 13
Automatic Extrusion Blow Molding Machine for HDPE Plastic with 130 kg/h Output Capacity 14
Automatic Extrusion Blow Molding Machine for HDPE Plastic with 130 kg/h Output Capacity 15
Automatic Extrusion Blow Molding Machine for HDPE Plastic with 130 kg/h Output Capacity 16
Automatic Extrusion Blow Molding Machine for HDPE Plastic with 130 kg/h Output Capacity 17
FAQ
Q1
Can we visit your factory?
A1
Sure. We located in Zhangjiagang city which is very near Shanghai. For overseas customers, you can fly to Shanghai Pudong International Airport. We can pick you up in the Airport. (or Hongqiao International Airport. ) We also provide visit online by video.
Q2
How can we get the exact price of plastic machine?
A2
Contact us with the products size, shape, annual quantity and photo if possible. We can recommend our machine models with quotation.
Q3
Do you provide any spare parts with machine?
A3
Yes, we offer all necessary spare parts before shipment.(contact us for packing list )
Q4
How about your after-sale service ?
A4
We offer manual instruction and engineer training before loading,after shipment we provide 24 HRS online support, video technical support or field installation assist.
Q5
What is the lead time?
A5
For customized machine, it takes about 45-50 days after deposit. For stock machine, fast shipment. ( The actual production cycle will vary according to the degree of customization.)
Q6
What is the warranty period for your machine ?
A6
12 months warranty for components and technical support .
Q7
Do you provide custom machines?
A7
Most of our machines are customized. Our goal is efficiency and stable performance. We design the machines according to customers products to meet customer' needs.
Q8
How can we install the machine when it arrives?
A8
We can send experienced technicians to customer's country for guiding the installation and commission the machine, also train the customer's employees.
Q9
What's DAWSON's advantage?
A9
DAWSON provide customers with turnkey projects. Including plant design, plastic machine and mold installation, debugging, also we can source the auxiliary equipment for customers. We can ship the full set of machines after testing in our factory. It will save a lot of cost and time.
DAWSON will be your reliable friend in China, and we will always do our best to give you max support!
Automatic Extrusion Blow Molding Machine for HDPE Plastic with 130 kg/h Output Capacity 18
Zhangjiagang Dawson Machine Co., Ltd.located in Zhangjiagang city, have more than 18 years' experience in the field of plastic machinery, injection molding machine, blow molding machine, PET blowmolding machine, injection blow molding machine, during the past 18 years, wealways force our energy into new areas of plastic machinery, plastic packaging machinery, to update the technology, to learn advanced experience, to confirmnew theory and new design, we are forming a unique competitive advantage of our owns.The machines from our company carry good quality and effective after-sales service, upon the market,customers from more than 45 countries, we provide complete solution for your plastic industry business, as well as all sorts of technical support & after-sale services!Our production workshop Our production floors featuresmeticulously arranged blow moldingequipments,designed for high-volwdests without compremising qualityThe spacing layout enservedmagnment workflow, supportingtimely delivery for global clients.SERVICE TEAM Our production floors features meticulously arranged blow moldingequipments,designed for high-volwdests without compremising qualityThe spacing layout enservedmagnment workflow, supportingtimely delivery for global clients. why choose us Choose us for more than machines: Get reliable equipment that runs smoothly, plus a partner who keeps your production on track — just as our clients’ real feedback shows.
