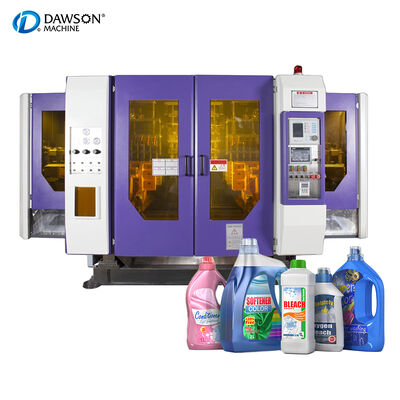

440V Voltage Full Automatic Laundry Detergent Extrusion Blow Molding Machines Production Line 2L 3L 4L Weight 11 Ton System

$52,860/sets 1-4 sets
prezzo
440V Voltage Full Automatic Laundry Detergent Extrusion Blow Molding Machines Production Line 2L 3L 4L Weight 11 Ton System
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Videoispezione in uscita: Fornito
Rapporto di prova del macchinario: Fornito
Componenti principali: PLC, motore, cuscinetto, ingranaggio, ingranaggio
Lavorazione plastica: PP, HDPE, ABS, PVC, PE, EVA, PE/PP, HDPE/PP
Luogo di origine: Cina
brand name: Dawson
Voltaggio: 440V/415V/380V/220V
Dimensione (L*W*H): 4,9*3,68*2.
Forza di serraggio (KN): 44/110
Marchio PLC: Siemens
Rapporto L/D della vite: 24
Diametro della vite (mm): 75
Prodotto (kg/h): 120
Automazione: automatico
N. di zone di riscaldamento a vite: 3
Potenza di riscaldamento della vite (kW): 12.5
Potenza motore estrusore (kW): 30
Dimensione della piastra di muffa (larghezza) (mm): 270
Dimensione della piastra di muffa (altezza) (mm): 620
pressione dell'aria (MPA): 0,8
Consumo d'aria (m³/min): 15
Potenza di riscaldamento della testa dello stampo (kW): 7
Potenza (kW): 62
Peso (t): 11
Punti chiave di vendita: Facile da usare
Garanzia: 1 anno
Tipo di stampaggio mediante soffiaggio: Macchina dello stampaggio mediante soffiatura dell'estrusione
Dimensione massima di applicazione: 200-500ml
Materiale della muffa: P20, 2316, S136H, alluminio con berillio rame.
Durata della vita della muffa: > 1.000.000 cicli
Impostazioni della lingua: Pannello cinese ed inglese di operazione
Istruzioni fornite: Istruzioni in cinese ed inglese
Domanda di manodopera: operetor 1~2
Servizio post-vendita fornito: Installazione sul campo, messa in servizio e formazione
Colore: Viola
stazione: Stazione Doule
Evidenziare:

2l laundry detergent machine

,

3l laundry detergent machine

,

4l laundry detergent machine
Informazioni di base
Termini di pagamento e spedizione
Descrizione di prodotto
440V Voltage Full Automatic Laundry Detergent Extrusion Blow Molding Machines Production Line 2L 3L 4L Weight 11 Ton System 0
440V Voltage Full Automatic Laundry Detergent Extrusion Blow Molding Machines Production Line 2L 3L 4L Weight 11 Ton System 1
Products Description


DAWSON MACHINERY & MOULD GROUP

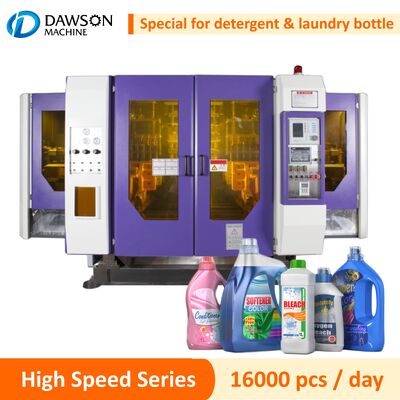

High speed Extrusion Blow Molding Machine
suitable for making plastic bottle, blowing jars, blow molding small containers, jerrycans from 5L to 20L,
The whole blow molding machine is equipped with bilingual operation panel
and automatic configuration from world famous brands to realize the advantages of simple operation
and high automation.

440V Voltage Full Automatic Laundry Detergent Extrusion Blow Molding Machines Production Line 2L 3L 4L Weight 11 Ton System 2
440V Voltage Full Automatic Laundry Detergent Extrusion Blow Molding Machines Production Line 2L 3L 4L Weight 11 Ton System 3
Machine Model
Max. Bottle size
Production forecast
FB SERIES
Double Station 6 Head
500ml
2000-2500 BPH
Double Station 8Head
200ml
2500-3000 BPH
Technical Parameters
Basic parameters
Suitable material
PE.PP,PVC,PS,PETG,so on
Max volume
200ml/500ml
Output capacity
2000~2500pcs/h
Size
4.09x3.68x2.57(M)
Weight
8.2T
system
Specification
Parameters
Note
Plasticizion system
Summarize
High efficient low power consumption plasticizion system, transducer control, self-protect function when started at low
temperature
Reducer
Hard finishing,High intension,Low noise reducer
Screw
∮65/75mm,L/D ratio 24, 38CrMoALA
Cooling system available
Plasticization
120Kg/H
HDPE
Heating Zone
3 Aluminum Heater
Automatic heating
Heating power
8KW/H
Extrusion Motor
Three phase asynchronous motor (380V,50HZ)
Cooling Fan
4zone
Automatic cooling
Extrusion system
Summarize
High-grade alloy steel, center feeding
Die head number
1
Center distance of die heads
/
Max die mouth
∮180mm
Heating zone
4 Stainless steel heating cycle
Heating power
5~7KW
Clamping system
Summarize
High intension, rigidity, center mold locking, stable mould opening and clamping system
Clamping force
108KN
Template distance
240~660mm
Max mould size
530X550mm
Mould material
High grade 50# steel
Electric system
Summarize
PLC+ touch screen(man-machine interface)standard extrusion blow molding machine controlling system(AUTO monitoring, fault-alarm,
auto counting ,auxiliary function available)

Japanese Mitsubishi PLC
system
Operate interface
Touch screen, automatic self-diagnose alarm system
Temperature control
Automatic temperature control module
Movement control
Japanese Mitsubishi, Chinese/English
Version
Electric protection
Ampere overload, electric short circuit self-protection function
Hydraulic system
Summarize
Multiple function hydraulic integrated block Proportional control, high efficient
Oil pump motor
Three phase asynchronous motor 11kw (380V/220V,50/60HZ)
Oil pump
Imported double pump
Valves
Imported oil pump valves and connections
Oil pipes
Double layer overpressure resistant
System pressure
60Kg/cm²
Cooling system
Separate water cooling cycle, oil cooler cooling system
Pneumatic system
Summarize
Taiwan AIRTAC pneumatic system
Air pressure
0.6Mpa
Air displacement
0.9M3/min
Electromagnetic valve
Taiwan AIRTAC
Cooling system
Summarize
Separate cooling system of mould, barrel and oil system
Cooling medium
Water
Water flow
90L/min
Water pressure
0.3-0.5MPa
440V Voltage Full Automatic Laundry Detergent Extrusion Blow Molding Machines Production Line 2L 3L 4L Weight 11 Ton System 4
440V Voltage Full Automatic Laundry Detergent Extrusion Blow Molding Machines Production Line 2L 3L 4L Weight 11 Ton System 5
440V Voltage Full Automatic Laundry Detergent Extrusion Blow Molding Machines Production Line 2L 3L 4L Weight 11 Ton System 6
440V Voltage Full Automatic Laundry Detergent Extrusion Blow Molding Machines Production Line 2L 3L 4L Weight 11 Ton System 7

Click here to send us messages >> Send Inquiry...

Details Images
440V Voltage Full Automatic Laundry Detergent Extrusion Blow Molding Machines Production Line 2L 3L 4L Weight 11 Ton System 8

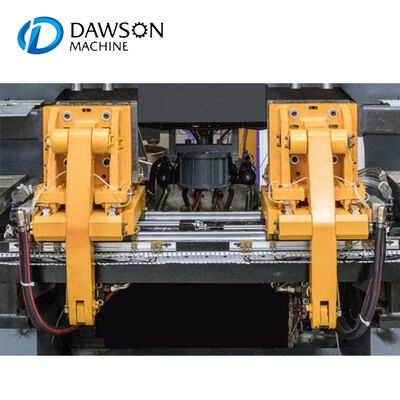

Symmetric Toggle Clamping Structure

对衡式肘节锁模机构




Deceleration Valve for Carriage Movement

移模减速阀
440V Voltage Full Automatic Laundry Detergent Extrusion Blow Molding Machines Production Line 2L 3L 4L Weight 11 Ton System 9
440V Voltage Full Automatic Laundry Detergent Extrusion Blow Molding Machines Production Line 2L 3L 4L Weight 11 Ton System 10



All Switches & Breaker use France Schneider

施耐德开关/断路器




Servo Pump for Hydraulic System

伺服油泵液压系统
440V Voltage Full Automatic Laundry Detergent Extrusion Blow Molding Machines Production Line 2L 3L 4L Weight 11 Ton System 11
440V Voltage Full Automatic Laundry Detergent Extrusion Blow Molding Machines Production Line 2L 3L 4L Weight 11 Ton System 12




Germany Siemens Controlling System

德国西门⼦控制系统




Digital 100 points
Servo Controller

独⽴显⽰100点伺服厚薄控制器
440V Voltage Full Automatic Laundry Detergent Extrusion Blow Molding Machines Production Line 2L 3L 4L Weight 11 Ton System 13
Professional Workshop
Our professional blow molding machine workshop and service team ...
440V Voltage Full Automatic Laundry Detergent Extrusion Blow Molding Machines Production Line 2L 3L 4L Weight 11 Ton System 14
440V Voltage Full Automatic Laundry Detergent Extrusion Blow Molding Machines Production Line 2L 3L 4L Weight 11 Ton System 15
440V Voltage Full Automatic Laundry Detergent Extrusion Blow Molding Machines Production Line 2L 3L 4L Weight 11 Ton System 16
High Quality Mould
High Quality Blow Molding mould

In the process of plastic blow molding, the mold is a very important part. A good blow mould can make the product production more smoothly, and a good blowing mold can also make the finished product more flexible and beautiful.

We have our own mold production workshop, using high configuration equipment and mold engineers with 16 years of technical experience to customize blow molding mold for you.

- We use the best stainless steel S136H or Aluminium alloy 7075# as mould main material- Necking plate use JAPAN DC53 Heat
treatment to HRC62
- Double neck design available to change in future as a spare part necking
- All mould can be made auto-deflashing or manual deflashing as per customer requests
- Perfect mould cooling design to ensure the best moulding preformace
- Available to provide 2D & 3D product drawing for customers
- Available to send samples to customer for approval the product quality
- We had already made moulds for TOTAL,SHELL,GULF,BMW,YAMAHA,MOBIL,TOYOTA,MENGNIU, HYUNDAI,MENTHOLATUM,UNILEVER,LEE KUM KEE...
440V Voltage Full Automatic Laundry Detergent Extrusion Blow Molding Machines Production Line 2L 3L 4L Weight 11 Ton System 17
440V Voltage Full Automatic Laundry Detergent Extrusion Blow Molding Machines Production Line 2L 3L 4L Weight 11 Ton System 18
Company Profile


DAWSON MACHINERY & MOULD GROUP


Our customers are all around the world.

Vietnam, Australia, Indonesia, Malaysia, Thailand, Sri Lanka, Kazakhstan, Russia, UAE, Saudi Arabia, Malta, Romania, Italy, India, Syria, Ethiopia, Egypt, Sudan, Tunisia, Algeria, Kenya, Nigeria, South Africa, Zimbabwe, Mexico, Guatemala, Ecuador, Colombia, Venezuela, Peru....

We have our own service team in
Saudi Arabia, Colombia, Panama, South Africa ...
440V Voltage Full Automatic Laundry Detergent Extrusion Blow Molding Machines Production Line 2L 3L 4L Weight 11 Ton System 19

DAWSON MACHINE & MOULD GROUP
located in Zhangjiagang city, have more than 18 years' experience in the field of plastic machinery,
blow molding machine, injection molding machine, PET blow molding machine, injection blow molding machine, during the past 18 years, we always force our energy into new areas of plastic machinery, plastic packaging machinery, to update the technology, to learn advanced experience,
to confirm new theory and new design, we are forming a unique competitive advantage of our owns.
The machines from our company carry good quality and effective after-sales service, upon the market,
customers from more than 45 countries, we provide complete solution for your plastic industry
business, as well as all sorts of technical support & after-sale services!

DAWSON will be your reliable friend in China, and we will always do our best to give you max support!

Customer Photos
We committed to providing customers with plastic machinery & equipment production lines beyond expectations.

Customer satisfaction is our eternal pursuit...
440V Voltage Full Automatic Laundry Detergent Extrusion Blow Molding Machines Production Line 2L 3L 4L Weight 11 Ton System 20
440V Voltage Full Automatic Laundry Detergent Extrusion Blow Molding Machines Production Line 2L 3L 4L Weight 11 Ton System 21
440V Voltage Full Automatic Laundry Detergent Extrusion Blow Molding Machines Production Line 2L 3L 4L Weight 11 Ton System 22
440V Voltage Full Automatic Laundry Detergent Extrusion Blow Molding Machines Production Line 2L 3L 4L Weight 11 Ton System 23
440V Voltage Full Automatic Laundry Detergent Extrusion Blow Molding Machines Production Line 2L 3L 4L Weight 11 Ton System 24
440V Voltage Full Automatic Laundry Detergent Extrusion Blow Molding Machines Production Line 2L 3L 4L Weight 11 Ton System 25
440V Voltage Full Automatic Laundry Detergent Extrusion Blow Molding Machines Production Line 2L 3L 4L Weight 11 Ton System 26
440V Voltage Full Automatic Laundry Detergent Extrusion Blow Molding Machines Production Line 2L 3L 4L Weight 11 Ton System 27
440V Voltage Full Automatic Laundry Detergent Extrusion Blow Molding Machines Production Line 2L 3L 4L Weight 11 Ton System 28
440V Voltage Full Automatic Laundry Detergent Extrusion Blow Molding Machines Production Line 2L 3L 4L Weight 11 Ton System 29
440V Voltage Full Automatic Laundry Detergent Extrusion Blow Molding Machines Production Line 2L 3L 4L Weight 11 Ton System 30
440V Voltage Full Automatic Laundry Detergent Extrusion Blow Molding Machines Production Line 2L 3L 4L Weight 11 Ton System 31
440V Voltage Full Automatic Laundry Detergent Extrusion Blow Molding Machines Production Line 2L 3L 4L Weight 11 Ton System 32
440V Voltage Full Automatic Laundry Detergent Extrusion Blow Molding Machines Production Line 2L 3L 4L Weight 11 Ton System 33
Our Service
440V Voltage Full Automatic Laundry Detergent Extrusion Blow Molding Machines Production Line 2L 3L 4L Weight 11 Ton System 34
440V Voltage Full Automatic Laundry Detergent Extrusion Blow Molding Machines Production Line 2L 3L 4L Weight 11 Ton System 35
FAQ

Q: Can we visit your factory?

Sure. We located in Zhangjiagang city which is very near Shanghai. For overseas customers, you can fly to Shanghai Pudong
International Airport. We can
pick you up in the Airport. (or Hongqiao International Airport. ) We also provide visit online by video.

Q: How can we get the exact price of plastic machine?

Contact us with the products size, shape, annual quantity and photo if possible. We can recommend our machine models with
quotation.

Q: Do you provide any spare parts with machine?

Yes, we offer all necessary spare parts before shipment.(contact us for packing list )

Q: How about your after-sale service ?

We offer manual instruction and engineer training before loading,after shipment we provide 24 HRS online support, video technical
support or field installation assist.

Q: What is the lead time?

For customized machine, it takes about 45-50 days after deposit. For stock machine, fast shipment. ( The actual production cycle will vary according to the degree of customization.)

Q: What is the warranty period for your machine ?

12 months warranty for components and technical support .

Q: Do you provide custom machines?

Most of our machines are customized. Our goal is efficiency and stable performance. We design the machines according to customers
products to meet customer' needs.

Q: How can we install the machine when it arrives?

We can send experienced technicians to customer's country for guiding the installation and commission the machine, also train the
customer's employees.

Q: What's DAWSON's advantage?

DAWSON provide customers with turnkey projects. Including plant design, plastic machine and mold installation, debugging, also we
can source the auxiliary equipments for customers. We can ship the full set of machines after testing in our factory. It will save
a lot of cost and time.

DAWSON will be your reliable friend in China, and we will always do our best to give you max support!
Prodotto Tag:

macchina dello stampaggio mediante soffiatura dell'estrusione 100L

macchina automatica dello stampaggio mediante soffiatura 3L

Macchina dello stampaggio mediante soffiatura dell'estrusione ABLD100

Prodotti raccomandati
Mettetevi in ​​contatto con noi
Persona di contatto : Mrs. Sara
Telefono : 15850801260
Caratteri rimanenti(20/3000)
Mettiti in contatto
Camera 1105, blocco B, centro commerciale Huijin, n. 20# Renmin East Road, Yangshe Town, Zhangjiagang City, Jiangsu, Cina
sara@dawson-plastic.com
15850801260
circa
Profilo aziendale Fatory Tour Controllo di qualità Contattaci
Prodotti
Fresatrice automatica del colpoMacchina dello stampaggio mediante soffiatura dell'estrusioneJerry Can Blow Molding Machine Tutte le categorie
Scrivici
Fateci sapere la vostra esigenza. Collegheremo i migliori prodotti con te.
Mappa del sito │ Sito mobile │ politica sulla riservatezza
La Cina buon qualità Fresatrice automatica del colpo fornitore. © 2021 - 2025 Dawson Machinery & Mould Group Co.,Ltd. All Rights Reserved.
